7680Hz Ultra-High Refresh LED Video Wall Display with Fine Pixel Pitch P1.86 P2 P2.5 and Front Maintenance
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | Charming |
| Πιστοποίηση: | CE,ROHS,LVD,EMC,CB,BIS,UL |
| Αριθμό μοντέλου: | P1.8, P2, P2.5 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 2 τεμ |
|---|---|
| Τιμή: | Διαπραγματεύσιμα |
| Συσκευασία λεπτομέρειες: | Θήκη χαρτοκιβωτίων, ξύλινη θήκη, θήκη πτήσης |
| Χρόνος παράδοσης: | 7 εργάσιμες ημέρες μετά την πληρωμή |
| Όροι πληρωμής: | Western Union, l/c, t/t, paypal, μετρητά |
| Δυνατότητα προσφοράς: | 10000 τεμ. Την εβδομάδα |
|
Λεπτομερής ενημέρωση |
|||
| Μέγεθος ντουλαπιού: | 657*2075*490 χλστ | Τύπος Αριθμός: | P1.86 P2 P2.5 |
|---|---|---|---|
| Συχνότητα ανανέωσης: | 7680 Hz | Φωτεινότητα οθόνης: | 800 cd/㎡ |
| Διάρκεια ζωής: | 50.000 ώρες | Βαθμός IP: | IP43 |
| Κλίμακα του Γκρι: | 14-16bit | Θερμοκρασία λειτουργίας: | -20 ~ 40 ℃ |
| Επισημαίνω: | 7680Hz Refresh Frequency LED Video Wall Display,Fine Pixel Pitch P1.86 P2 P2.5 LED Panel,Front Maintenance LED Screen |
||
Περιγραφή προϊόντων

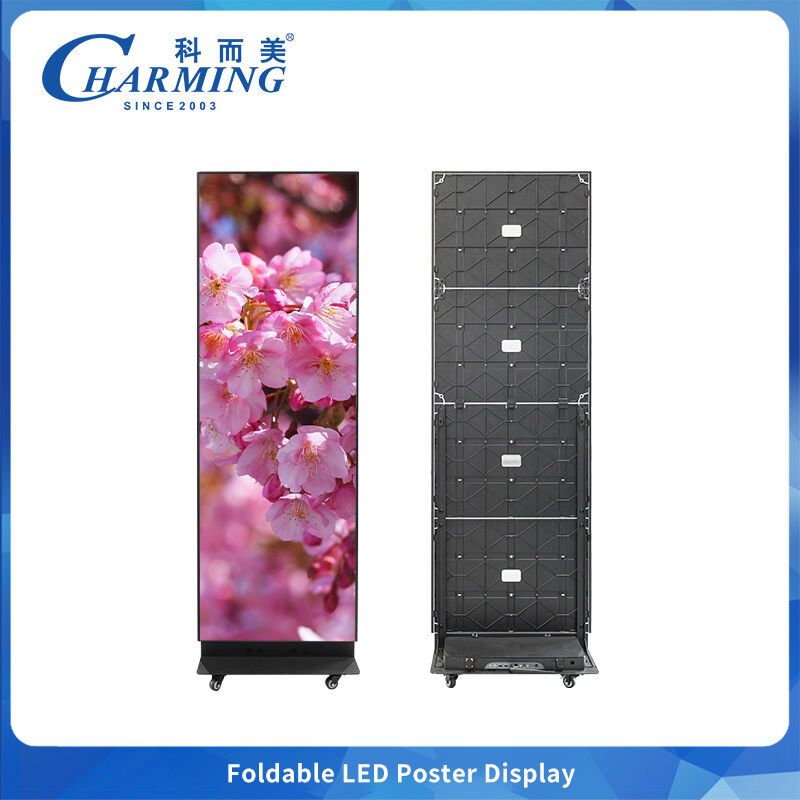

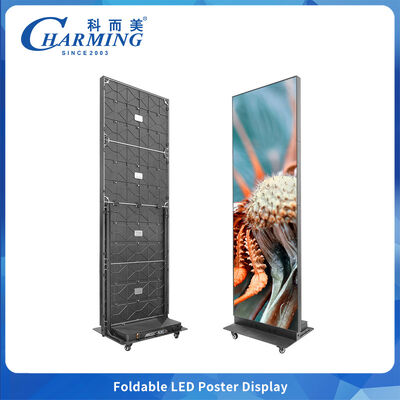

7680Hz Poster Screen Ultra-High Refresh LED Panel
High-performance foldable LED screen display with P1.86, P2, and P2.5 pixel pitch options featuring wireless program publishing and front maintenance capabilities. Designed with 25% less packaging space and 360° universal wheels for easy mobility, perfect for indoor rental and advertising applications.
Technical Specifications
| Specification | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension | 657*2075*490mm | ||
| Maximum Power | 600W | ||
| Brightness | 600 CD/㎡ | 600 CD/㎡ | 800 CD/㎡ |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Viewing Angle | 140° | ||
| Protection Level | IP43 | ||
| Refresh Rate | 7680Hz | ||
| Pixel Pitch | 1.86MM | 2MM | 2.5MM |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density | 288906 Dot/㎡ | 202500 Dot/㎡ | 160000 Dot/㎡ |
| Grey Level | 14-16 Bit | ||
| Working Temperature | -20~40°C | ||
| Life Span | 50000 Hours | ||
| Working Voltage | AC220V, 50/60HZ | ||
About Charming Co., Ltd.
Since 2003, Charming Co., Ltd. has revolutionized entertainment lighting by introducing the world's first purpose-built LED display for stage applications. Today, we're proud to be China's favorite entertainment LED brand, trusted by professionals worldwide.
What Makes Us Special?
- Innovation: Nearly 100 patents and counting
- Quality: ISO-certified manufacturing in our 10,000 sqm smart factory
- Global Reach: 22 years of excellence across 150+ countries
Warranty & Support
Comprehensive Warranty Coverage
- 2-Year Full Warranty - Free repair or replacement for all displays, modules, and components
- Lifetime Maintenance - Only material costs apply after warranty period
Technical Support Services
- Free professional training (operation & maintenance)
- Complete documentation (manuals, software guides, test reports, CAD drawings)
- Expert consultation & customized solutions
After-Sales Service
- On-site support (upon request)
- Remote troubleshooting
- Regular maintenance recommendations
- Software/firmware updates
- Spare parts supply
We provide not just premium products, but complete peace of mind with end-to-end support throughout your project lifecycle.
